頻率范圍最高達 6 GHz、18 GHz、40 GHz 以及 67 GHz 的步進衰減器 達 139.9 dB、139 dB、115 dB 以及 75 dB 的最大衰減范圍 0.1 dB、1 dB 以及 5 dB 的最小步長 除了內部衰減器之外，最多還可以控制四個外部衰減器（R&S?RSC-Z405 (40 GHz) 或 R&S?RSC-Z675 (67 GHz)） 因頻率響應校正及用戶校準而具有高精確性

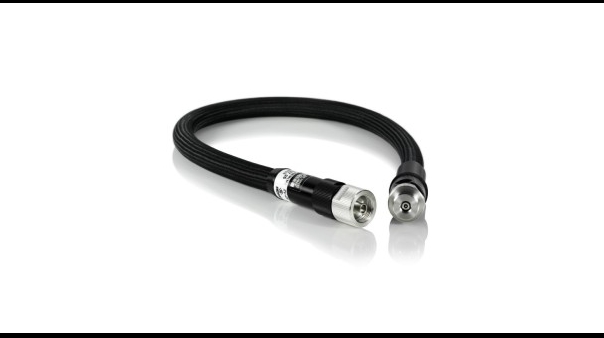

R&S?ZV-Z19x：高端測試電纜，輕型，抗彎性能出色，幾乎不回彈
高端VNA測試電纜
優異的電氣和機械性能
接口：N，3.5mm，2.92mm，2.4mm，1.85mm，1.0mm。
輕質結構
出色的相位和振幅穩定性
彎曲半徑小，不影響性能
| 型號 | 訂貨號 | 說明 |
| R&S?ZV-Z191 | 1306.4507.24 | Test port cable, 0 Hz to 18 GHz, N (m) – N (m), length 610 mm (24 in) |
| R&S?ZV-Z191 | 1306.4507.36 | Test port cable, 0 Hz to 18 GHz, N (m) – N (m), length 914 mm (36 in) |
| R&S?ZV-Z192 | 1306.4513.24 | Test port cable, 0 Hz to 18 GHz, N (m) – 3.5 mm (m), length 610 mm (24 in) |
| R&S?ZV-Z192 | 1306.4513.36 | Test port cable, 0 Hz to 18 GHz, N (m) – 3.5 mm (m), length 914 mm (36 in) |
| R&S?ZV-Z193 | 1306.4520.24 | Test port cable, 0 Hz to 26.5 GHz, 3.5 mm (f) – 3.5 mm (m), length: 610 mm (24 in) |
| R&S?ZV-Z193 | 1306.4520.36 | Test port cable, 0 Hz to 26.5 GHz, 3.5 mm (f) – 3.5 mm (m), length: 914 mm (36 in) |
| R&S?ZV-Z193 | 1306.4520.60 | Test port cable, 0 Hz to 26.5 GHz, 3.5 mm (f) – 3.5 mm (m), length: 1524 mm (60 in) |
| R&S?ZV-Z193 | 1306.4520.61 | Test port cable, 0 Hz to 26.5 GHz, 3.5 mm (m) – 3.5 mm (m), length 1524 mm (60 in) |
| R&S?ZV-Z194 | 1306.4542.24 | Test port cable, 0 Hz to 3 GHz, N (m) – N (m), length 610 mm (24 in) |
| R&S?ZV-Z194 | 1306.4542.36 | Test port cable, 0 Hz to 3 GHz, N (m) – N (m), length 914 mm (36 in) |
| R&S?ZV-Z195 | 1306.4536.24 | Test port cable, 0 Hz to 40 GHz, 2.92 mm (f) – 2.92 mm (m), length: 610 mm (24 in) |
| R&S?ZV-Z195 | 1306.4536.36 | Test port cable, 0 Hz to 40 GHz, 2.92 mm (f) – 2.92 mm (m), length 914 mm (36 in) |
| R&S?ZV-Z196 | 1306.4559.24 | Test port cable, 0 Hz to 67 GHz, 1.85 mm (f) – 1.85 mm (m), length 610 mm (24 in) |
| R&S?ZV-Z196 | 1306.4559.25 | Test port cable, 0 Hz to 67 GHz, 1.85 mm (m) – 1.85 mm (m), length 610 mm (24 in) |
| R&S?ZV-Z196 | 1306.4559.36 | Test port cable, 0 Hz to 67 GHz, 1.85 mm (f) – 1.85 mm (m), length 914 mm (36 in) |
| R&S?ZV-Z196 | 1306.4559.37 | Test port cable, 0 Hz to 67 GHz, 1.85 mm (m) – 1.85 mm (m), length 914 mm (36 in) |
| R&S?ZV-Z197 | 1306.4571.24 | Test port cable, 0 Hz to 50 GHz, 2.4 mm (f) – 2.4 mm (m), length 610 mm (24 in) |
| R&S?ZV-Z197 | 1306.4571.36 | Test port cable, 0 Hz to 50 GHz, 2.4 mm (f) – 2.4 mm (m), length 914 mm (36 in) |
| R&S?ZV-Z198 | 1306.4565.06 | Test port cable, 0 Hz to 110 GHz, 1.00 mm (f) – 1.00 mm (m), length 160 mm (6 in) |
